Step 3: Models

figure Models

figure

1.   Enable the standard $k$- $\epsilon$ turbulence model.

figure Models figure figure Viscous figure Edit...

figure

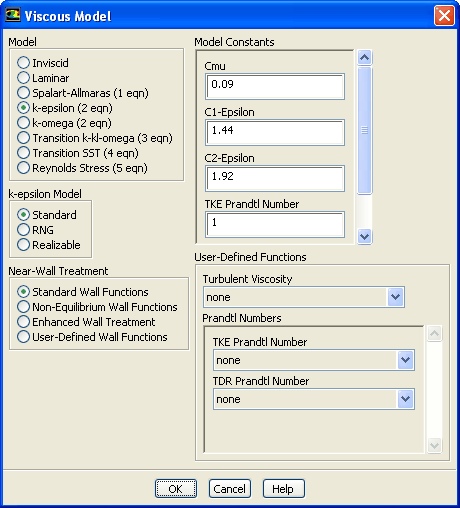

(a)   Select k-epsilon from the Model list and retain the default selection of Standard in the k-epsilon Model group box.

(b)   Click OK to close the Viscous Model dialog box.
